What is Penetrating Damp?
Penetrating damp is moisture entering through external walls or roofs, caused not by rising groundwater but by faults in your building’s outer shell. The result may be sporadic, horizontal patches of damp—often far from the original source. Left untreated, this process undermines more than comfort; it threatens the long-term health, compliance, and value of your property.
How Does Penetrating Damp Take Hold?
Every building—historic or new—defends against rain and humidity, yet most fail when maintenance slips or materials weaken. Rainwater finds its path through:
- Blocked or damaged gutters that spill directly onto brick or stone
- Porous masonry absorbing water, especially after years of weather exposure
- Fine cracks in render or seals that go unnoticed after settling or temperature change
- Failed jointing around windows, flashings, or roof details
Where ambition meets vigilance, prevention wins. Where diligence falters, water advances. Moisture penetrates horizontally or diagonally—not just rising from the base—making cause tracing a forensic task.
The patch you ignore after one wet winter sets the agenda for your next decade of repairs.
The Role of Environment
Properties near the coast, on hills, or in high-rainfall regions experience accelerated risk. A single missed gutter clearance or faulty repair brings the process forward by years—a task often underestimated until staining or crumbling plaster demands attention.
If you’re uncertain about the cause or extent of a suspicious patch, early assessment is your edge. A moisture risk check from Sussex Damp Experts removes guesswork—and costs—from your property’s future.
Which Signs Warn You That Penetrating Damp Is Developing?
Subtle or severe, the signs of penetrating damp always leave evidence. Early detection is not simply prudent—it helps you spot the earliest warning and avoid unnecessary cost. The list below helps you identify risks that hide in plain sight.
Subtle Signals that Escalate
- Tidal markings or damp patches irregularly climbing up walls

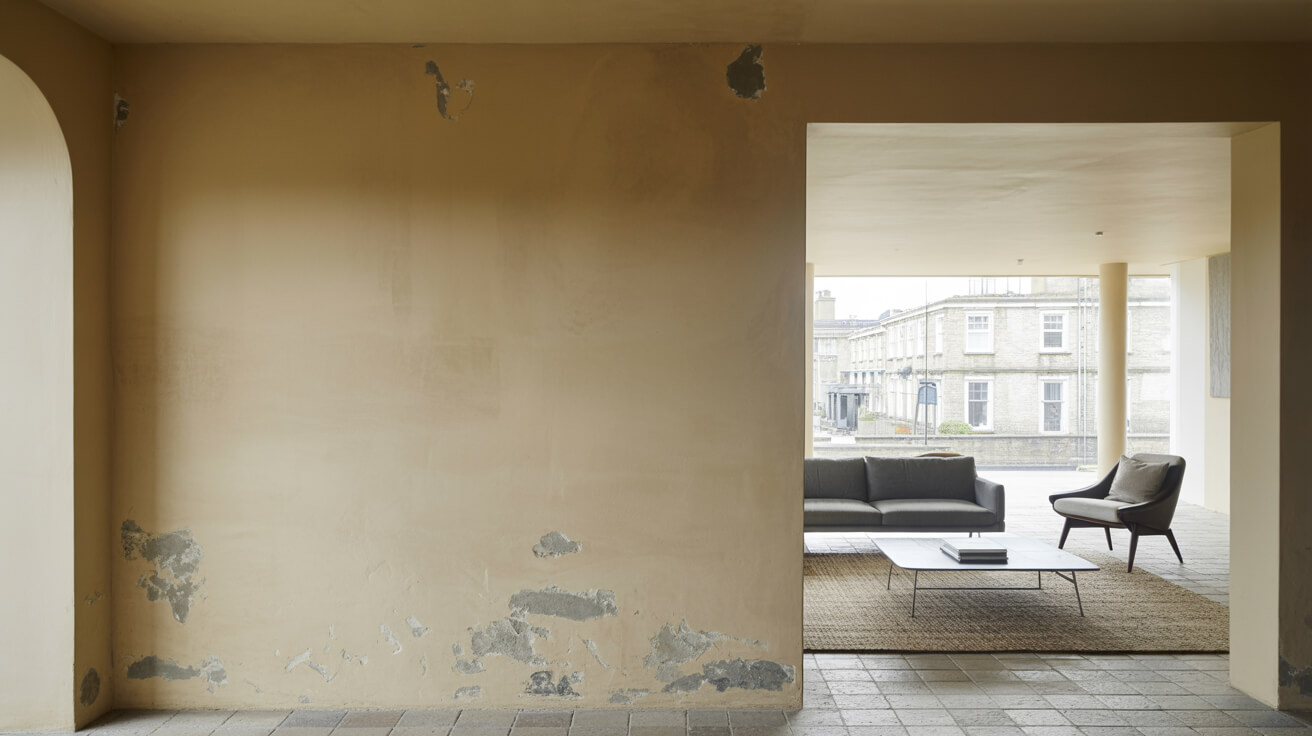

- Localised paint flaking or wallpaper lifting, unrelated to heating cycles
- Isolated black mould growth—often off the floor, streaking rather than pooling
- Frequent musty or “earthy” odours, even after cleaning
- Mortar joints or sills showing white salt blooms (efflorescence)
- Skirting boards or timber floors softening or distorting, especially near exteriors
Progression Patterns
Penetrating damp often worsens after rainfall and may recede temporarily during dry periods. Persistent incidents suggest structural entry. Unlike rising damp, it seldom starts at the skirting line. Condensation collects on cold surfaces; penetrating damp migrates through walls and ceilings, defying expected patterns.
| Symptom | Typical Damp Type | Immediate Action Needed? |
|---|---|---|
| Irregular stains | Penetrating | Check external entry points |
| Tidemark at base | Rising | Assess DPC presence/condition |
| Uniform black mould | Condensation | Improve ventilation |
| White surface salts | Penetrating/Rising | Diagnose for entry vs. draw |
Still unsure? Sussex Damp Experts use surveyor-grade technology to uncover the root—not just the symptom—of every damp patch.
Can Neglected Damp Compromise Your Health, Compliance, and Building’s Future?
Unchecked moisture in a building does more than degrade surfaces. Damp is a recognised risk under the UK’s Housing Health and Safety Rating System (HHSRS), with landlords and managers required to remediate or face enforcement. Tenants—especially families or those with children—may see health impacts from persistent damp and mould, ranging from respiratory irritation to aggravation of asthma.
Legal and Financial Stakes
- Properties with visible damp or mould fall short of “Fitness for Habitation” requirements and may void insurance or delay mortgages.
- Unresolved damp leads to significant devaluation—5–15% in affected regions.
- Complaints can escalate to legal action, fines, or enforcement notices, especially in rental and multi-occupancy properties.
Structural and Reputation Costs
- Prolonged exposure leads to decay in joist ends, isolated rot, and secondary infestations (e.g., fungi).
- Negative inspection or valuation reports impact sale and refinancing opportunities for years after visible repairs.
- Commercial and public buildings risk reputational damage, missed tenancies, or grant clawbacks if non-compliant.
A missed survey now can mean a lost buyer, tenant, or day in court later.
Sussex Damp Experts’ reports are structured to satisfy lenders, agents, and local authorities, closing the compliance loop before risk becomes loss.
How Do You Tell If It’s Penetrating, Rising, or Condensation Damp?
Identifying damp type is not a guessing game—misclassification is expensive. Each has a unique signature when viewed through professional diagnostics.
Comparative Table: Damp Type Differentiation
| Factor | Penetrating | Rising | Condensation |
|---|---|---|---|
| Path | Horizontal/diagonal | Vertical, from base | Surface, patchy |
| Timing | After rainfall | Persistent/seasonal | Seasonal, occupancy |
| Location | Any wall/ceiling | Ground level | Windows/cold spots |
| Salts present? | Sometimes | Usually | Rarely |
| Fixes | Repair defect, new render/joint | Repair DPC, replaster | Improve air flow |
Decoding Damp With Precision
Surveyors:
- Use depth moisture metres to map ingress
- Salt analysis to diagnose type (sulphate/nitrate split)
- Thermal imaging and borescope exploration for ambiguous cases
- Trace pattern migration across building geometry
Visual Flowchart Support
If you’re working through potential diagnosis, “Download Our Damp Identification Flowchart” for step-by-step self-assessment, yet always validate with certified survey.
Where Is Your Property Vulnerable: High-Risk Zones and Overlooked Weaknesses
Almost every building—residential, rental, commercial, or heritage—carries unique weak points vulnerable to lateral ingress. Recognising these can prevent a minor fix from spiralling into capital loss.
Zones of Greatest Risk
- Beneath gutters and at downpipe drains
- Parapet and flat roof junctions where expansion or contraction exposes seam failures
- Window reveals, sills, and door thresholds sensitive to improper sealing
- External walls joined at grade or with rising terrain
- Cavity wall insulation bridging, especially in properties post-1970s
- Heritage builds—especially rendered or lime-plastered—where traditional materials may struggle with modern repair methods
| Property Example | Specific Weakness |
|---|---|
| Victorian terrace | Sand-lime mortar, solid wall |
| 1980s cavity maisonette | Insulation bridging, DPC breach |
| Barn conversion | Wall/roof junction, timber frames |
| Listed property | Incompatible patching, lost breathability |
See a pattern you recognise? The earlier Sussex Damp Experts review your risk points, the fewer surprises you’ll face after bad weather or legal review.
What Does a Professional Damp Survey and Assessment Involve?
A true diagnosis means following the evidence. Sussex Damp Experts’ surveyors combine technological skill with regulatory compliance at every step.
The Assessment in Detail
- Listen: Interview the reporting party for patterns, timing, and location.
- Inspect: Visual scan of interior and exterior, noting suspect areas and prior repairs.
- Probe: Deploy calibrated moisture metres at various depths—document readings sum by area and time.
- Analyse: Conduct salt tests, bore sample extraction if ambiguous entry is suspected.
- Scan: Use thermal imagery in complex or visually finished areas.
- Validate: Map moisture patterns to building structure, tracking probable entry by deduction and elimination.
- Report: Document findings with annotated photos, lab data, and a defects/fix table. All findings set against PCA (Property Care Association), PAS2035, and BS6576 standards—commonly required by lenders, grant bodies, and local authorities.
What Sets Sussex Damp Experts Apart?
- Our surveys are structured for lenders, agents, and planning authorities (not just contractors or insurer forms).
- All reports include next-task priority guidance, not just defect listing.
- Follow-on repair and maintenance instruction secures warranty and long-term comfort.
A surveyor’s certainty today is your safeguard against regret months or years from now.
Secure your confidence—get a compliance-ready survey tailored to your property and risk profile.
How Is Penetrating Damp Fixed? Future-Proofing Buildings With the Right Intervention
Remediation is about more than patching and painting. Proper damp proofing means lasting solutions rooted in evidence-based diagnosis and enduring materials.
The Modern, Step-Wise Remediation Sequence
- Source elimination: Tackle the root—replace/repair gutters, downpipes, flashings, cracked render, and porous bricks.
- Damage removal: Strip spoiling plaster/reinstatement, decontaminate timbers, resolve any found secondary infestations.
- Restoration: Use breathable, compatibility-matched plasters for heritage/listed, avoid generic waterproofing membranes unless advised.
- Prevention: Apply or reapply breathable masonry cream or saline wash; avoid impermeable surface coatings without design guidance.
- Documentation: Every remedial action is photographed, warranty-attested, and suitability-logged for owner, agent, or compliance use.
Real Gains From Doing It Right
- Sussex Damp Experts’ aftercare, warranty, and annual checkups retain property value—ensuring eligibility for insurance renewal, council sign-off, and tenant retention.
- Transparent costing means no scope surprise or disruptive overruns.
- Recurring surveys/maintenance audits anticipate risks years before repair costs spike.
Considering an upgrade or tenanted property? Ask us about maintenance-planned, warranty-backed systems tailored to your needs.
Book Your Free Consultation With Sussex Damp Experts Today
When a property’s resilience is on the line, reactive repairs are not enough. Secure the future health, value, and compliance of your home, asset, or portfolio—whether you manage a single rental, a listed estate, or a multi-unit commercial block.
Our PCA-accredited, surveyor-led team provides evidence-based reports, root-cause diagnosis, actionable repair plans, and compliance-conscious aftercare—across East Sussex and beyond.
If you need confidence that your building’s moisture story ends in performance, occupant safety, and sustained asset value, act before water writes its next chapter for you.
Leaders act before the invoice arrives, not after the damage is done.
Contact Sussex Damp Experts now—set your standard for property resilience.
Frequently Asked Questions
What is penetrating damp, and how does it infiltrate residential or commercial properties?
Penetrating damp is the process of water moving horizontally through your building’s external walls—most often finding its way via failed mortar, porous bricks, defective render, or ill-maintained guttering. Unlike rising damp, which takes a slow climb from flooring or foundations, penetrating damp exploits the weakest points on any elevation of your property, working laterally under storm impact or prolonged rainfall.
The Hidden Mechanics of Moisture Ingress
Small structural oversights—think a cracked lintel above a window, gaps in pointing after a harsh winter, or a blocked downpipe spilling silently onto wall brickwork—can set off a cycle where each wet season amplifies the risk. In modern cavity-wall properties, insulation bridging may even ferry rainwater from outer to inner leaf, causing mysterious stains and damage where least expected. Heritage buildings are especially exposed due to the natural breathability—and inherent vulnerability—of historic lime mortars and soft stone.
| Weak Point | Ingress Mechanism | Outcome |
|---|---|---|
| Failed pointing | Capillary attraction, lateral spread | Internal damp, staining |
| Blocked gutter | Surface run-off, pressure zones | Watermarks, sills rot |
| Porous brick/stone | Absorption, freeze/thaw expansion | Salts, internal damp |
| Cracked render | Capillary wicking into substrate | Wall blistering, black mould |
| Faulty flashing | Localised leaks, rot | Patchy damp, timber decay |
Your vigilance in monitoring these entry points—especially after the first signs of watermarks or mustiness, which can sometimes be mistaken for rising damp signs—can tilt the balance from ever-escalating repair cycles to confident, proactive property stewardship. Sussex Damp Experts specialise in dissecting these failures at root cause, providing compliance-ready diagnostics that map the chain from exterior exposure to internal symptom.
How can you spot the earliest warning signs of penetrating damp before major structural damage occurs?
Initial signs are rarely dramatic—a faint damp patch halfway up a wall, recurring bubbles in paint, or a single area of wallpaper suddenly losing adhesion might seem harmless. The real risk is in missing the pattern: when Damp Is Developing at random heights or worsening after a rainy spell, chances are high that you’re seeing the result of lateral ingress.
Visual and Sensory Red Flags
Regular checks after rainstorms are critical. Seek out:
- Irregular damp patches, not confined to floor level.
- Tidal marks or water stains that darken after heavy weather.
- Localised black or grey mould, especially on cold external walls or under windows.
- Spotty salt (efflorescence) discolouring plaster or brickfaces—crystalline residue left by migrating moisture.
- Persistent musty smells even after heavy cleaning or warm weather.
In commercial or multi-unit properties, escalating repair calls, clustering damp complaints, or recurring insurance claims are warning signals, too. Heritage buildings may telegraph risk through crumbling mortar, powdering sills, or softening timber at wall junctions.
Progression Timeline
| Stage | Surface Clue | Deeper Implication |
|---|---|---|
| Early | Damp or musty odour | Rising internal RH, invisible breaches |
| Intermediate | Blistered paint, bubbling plaster | Substrate breakdown, hidden leakage |
| Advanced | Black mould, rotting wood, salts | Decay, compliance failure, health risk |
Leaving these clues unassessed guarantees the issue will evolve from décor problem to asset crisis. Sussex Damp Experts’ moisture-mapping and substrate profiling catch these signals before they spiral, giving you control and a clear course of action.
What are the real risks—health, compliance, and property value—if you ignore penetrating damp?
Unaddressed penetrating damp carries hidden costs that accrue faster than most anticipate, creating a perfect storm for residential owners, agents, and commercial landlords alike. The risk spans health, compliance, and asset performance—all intersecting at the point Damp Is Developing and a patch or smell is shrugged off as ‘minor’.
Health Hazards
Long-standing damp invades air quality, creating a haven for black mould (aspergillus, stachybotrys) which is a recognised trigger for asthma, respiratory illness, and skin irritation—especially for young children, the elderly, or immuno-suppressed residents. In multi-occupancy or rental properties, a single damp issue flagged by an Environmental Health Officer can launch mandatory HHSRS inspections or trigger penalty fines.
Compliance, Insurance, and Market Value
A flagged damp problem in a mortgage survey immediately threatens transactions, reducing offer price or halting completion. Insurers may attribute subsequent water damage claims to ‘maintenance neglect’ and void coverage. Local authorities can compel repairs or restrict occupancy. For commercial spaces, visible damp lowers rental yield, damages brand reputation, and increases downtime from failed fit-outs or recurring complaints.
Ignoring water ingress isn’t just maintenance deferred—it’s value deferred, compliance deferred, health and trust deferred. The cost of passivity always compounds.
Sussex Damp Experts’ compliance-certified diagnostics and solution reports restore stakeholder confidence and ensure your property never lingers on the market or loses trust to what should have been a straightforward fix.
What are the most common mistakes diagnosing and treating penetrating damp—and what proves you’ve got it right?
Damp diagnosis fails most often not due to bad intentions, but bad process. The assumption that any wall moisture is ‘rising damp’ or basic condensation remains a costly myth. Slapping on a tanking slurry, installing a chemical DPC, or relying on surface repaints may mask the symptom but always worsens broader vulnerability.
Why Generic Fixes Backfire
Diagnosing without mapping—the damp’s true pathway—means money spent on the wrong solutions, from misplaced ventilation fans to inappropriate waterproofing on historic walls. In cavity wall properties, missed insulation bridging is a quiet saboteur, often overlooked by even experienced trades. For heritage buildings, using modern impermeable products can trap water within precious substrates, accelerating decay rather than curing it.
The Sussex Damp Experts Methodology
Sussex Damp Experts’ approach is multi-layered:
1. Moisture profiling: Multi-depth metre readings (surface, core, cavity).
2. Salt analysis: Differentiates between capillary rise, rain soak, or plumbing anomalies.
3. Thermal imaging: Reveals cold bridges, insulation issues, or leaky flashings invisible to the eye.
4. Photo/evidence mapping: Creates a record trusted by mortgage lenders and insurers.
5. Compliance benchmarking: Every report structured to BS6576, PAS2035, and local authority requirements.
| Test | Targets | Weakness if Omitted |
|---|---|---|
| Depth reading | Source, scope | Surface-only misleads |
| Salts analysis | Rain vs. groundwater | Triggers wrong repair method |
| Imaging/bore scope | Cavity insulation, flashings | Issues left unchecked |
| Report structure | Mortgage/insurer acceptance | Delayed or denied claims |
A correct diagnosis unlocks repair funds, compliance awards, and mortgage approvals; a superficial fix invites cycles of failure masked as progress.
Where are the highest-risk weak points in homes and buildings that let penetrating damp in?
Every property—no matter how new, old, repaired, or retrofitted—has Achilles’ heels when it comes to lateral water ingress. Learning to spot the earliest warning ensures your attention (and investment) stays one step ahead of costly defect escalation.
Built-in Vulnerabilities by Era and Material
- Pre-war/solid wall: Unprotected brick/stone, wind-driven rain, softened pointing.
- Cavity wall/post-war: Debris or insulation bridging, water crossing to interior skins.
- Flat roofs/parapets: Flashing gaps, ponding, or design flaws at abutments.
- Basements, earth-retained walls: Hydrostatic pressure forcing water horizontally, clogging natural drainage.
- Glazing and lintels: Old sealant, thermal splits, metal corrosion.
- Modern extensions: Material mismatches, ill-joined interfaces.
In every property, the probability of failure multiplies when deferred maintenance, discount repairs, or ambiguous patching enter the equation.
Table: High-Risk Zones By Property Type
| Property Type | Key Weak Points |
|---|---|
| Victorian, Edwardian | Sand-lime pointing, external render |
| Mid-century cavity | Wall-tie corrosion, bridging insulation |
| Modern commercial | Expansion joints, flat roof flashings |
| Heritage/listed | Lime mortar loss, incompatible repointing |
If your property risk feels uncertain, Sussex Damp Experts offer zone-by-zone vulnerability audits, mapping every exposure to a proactive solution.
When do you need a professional damp survey—and what does an accredited inspection deliver?
The moment you see damp’s return after cosmetic patching, a pattern after each wet season, or when compliance (sale, insurance, tenancy) is at stake, you’re at the line where specialist intervention shifts from optional to necessary. A survey from an accredited firm is not a luxury—it is your attestation of diligence, the document that unlocks repairs, indemnifies transactions, and secures property value.
What a Professional Damp Survey Entails
Sussex Damp Experts deliver the industry benchmark through:
- Systematic exterior/interior walk-throughs: Checking all high-risk entrypoints, joints, connections, drainage, and hidden exposures.
- Full moisture and salt mapping: Multiple depths, all elevations, endoscope checks where needed.
- Photo/infrared documentation: Makes invisible damage visible, ready for insurance or lender review.
- Actionable, priority-based repair schedule: Organises next steps for cost, compliance, and impact.
- Pass/fail compliance metrics: Verification against BS6576, PAS2035, and proprietary standards—clearing council, mortgage, or legal hurdles.
| Survey Step | Why It Matters |
|---|---|
| Defect walkthrough | Surfaces all hidden risks |
| Moisture/salt testing | Pinpoints root causes |
| Photo documentation | Proof for lenders/insurers |
| Action schedule | Empowers cost-controlled action |
| Compliance scoring | Anticipates all authority checks |
This isn’t about buying a report. It’s about securing future freedom from cycles of regret.
Ownership means making risk disappear—not just for now, but for as long as you stay one step ahead.
Every owner, manager, or landlord thrives on decisiveness. Secure your asset and your reputation by choosing assessment over assumption—one zone, one diagnosis at a time.
